Header + hardware must match
Choose Your Curtain Header
The header controls the fold pattern, movement, stack size and correct place to begin the drop measurement.
Compare the actual sewing, rings, rod and track connection before selecting a header.
HeaderCompatible hardwareMeasure drop fromFullness rule
GrommetDecorative rodTop of rodChoose 1.5–2×
Rod pocketDecorative rodTop of rodChoose 1.5–2.5×
Pencil pleatRings or trackRing bottom / hookGathered or product-specific
Pinch pleatRings or trackRing bottom / hookBuilt into sewn pleats
Ripple foldCompatible ripple trackTrack/carrier referenceBuilt into system

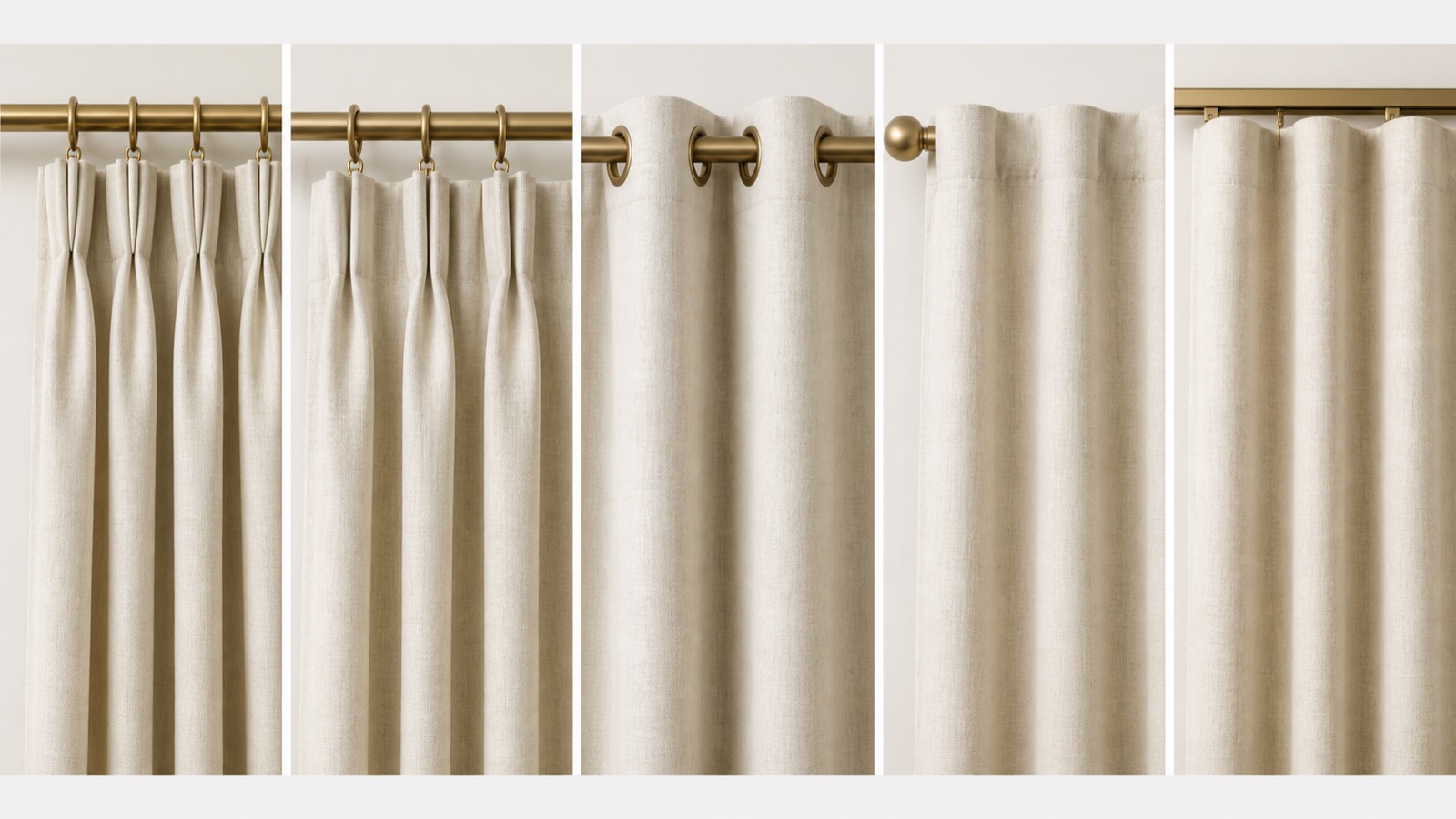

Grommet
Clean waves and easy movement on a visible rod. Check eyelet inside diameter against rod diameter.
Pencil Pleat
Gathered tape with hook adjustment. Distribute gathers evenly before hanging.
Pinch Pleat
Tailored sewn pleats with fixed spacing. Finished ordered width covers the hardware.
Rod Pocket
Soft gathered look, best for stationary or lightly operated curtains.
Ripple Fold
Uniform S-folds using compatible carriers, tape and track spacing. Do not mix systems.
Hardware is not assumed to be included. Read the individual product page and confirm rod/track, rings, hooks and carriers separately before ordering.
